Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
| Nama merek | HUASU |
|---|---|
| Sertifikasi | CE,ISO,UL,QS,GMP |
| Model Number | SBG |
| Minimum Order Quantity | 1 Line |
| Harga | USD10k-1000k |
| Packaging Details | STANDARD Package |
| Delivery Time | 90day |
| Payment Terms | TT,LC |
| Supply Ability | 100 Line |
Hubungi saya untuk sampel gratis dan kupon.
Whatsapp:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Diameter pipa ((MM) | 32-1600mm | Membentuk | Pembentukan Vakum |
|---|---|---|---|
| Daya Total (kw) | 200-1000KW | Sistem pendingin | Sistem pendingin bagian dalam lengkap. |
| Kepala Mati | Ekstrusi spiral berlapis ganda | fungsi pipa | Penutup pelindung kabel, transfer gas pipa transfer medis, transfer air |
| Max Speed (M/Min) | 1,5-5m/mnt | Output HDPE | 40-1600kg/jam |
| Menyoroti | Drainage corrugated pipe extrusion line,Water Transfer corrugated pipe extrusion line,corrugated PVC pipe production line |
||
Deskripsi Produk
Drainage Corrugated Pipe Extrusion Line For Water Transfer PVC Pipe
Product Description:
The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.
Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens PLC system.
Features:
The newly designed closed molding machine adopts a special high-efficiency cooling system for forming aluminum modules, greatly improving cooling efficiency in the production of corrugated pipe products.
High-speed, high-output single-screw extrusion machine supports a professionally designed corrugated pipe extrusion mold to achieve large-scale stable extrusion.
Good interchangeability of the module; the aluminum forming module uses LY12 high-quality alloy aviation aluminum material with copper content ≥ 5%, precision pressure casting process, high-density material, no light pores, and long-term use without easily deforming. Various module waveform schemes can be customized according to the user's requirements.

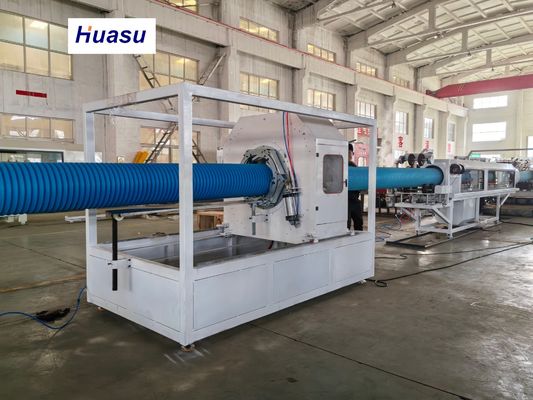

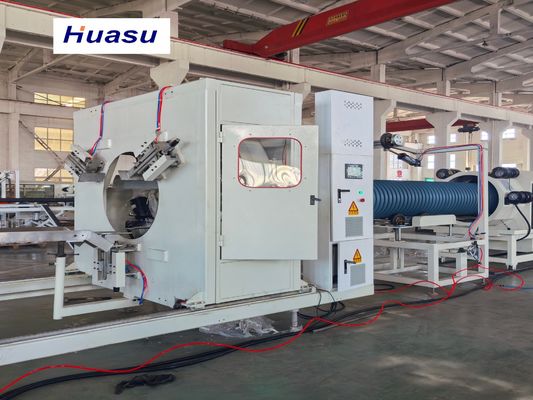

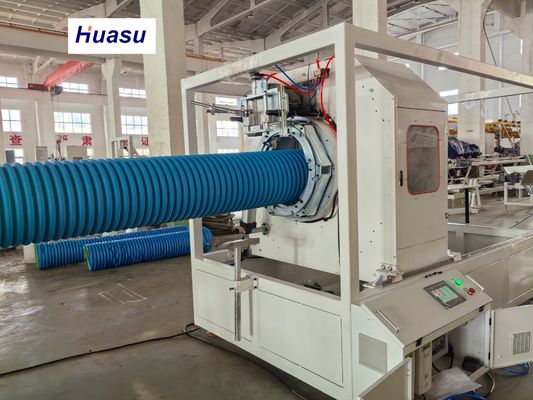

Supporting automatic DWC cutter, computer control, accurate cutting position, stable operation, and easy operation.
Technical Parameters:
| Die Head | Double-layer Spiral Co-extrusion |
| Cooling System | Complete Inner Cooling System |
| Forming | Vacuum Forming |
| Pipe Diameter (mm) | 32-1600mm |
| Pipe Function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Max Speed (m/min) | 1.5-5m/min |
| HDPE Output | 40-1600kg/h |
| Total Power (kW) | 200-1000kW |
Applications:

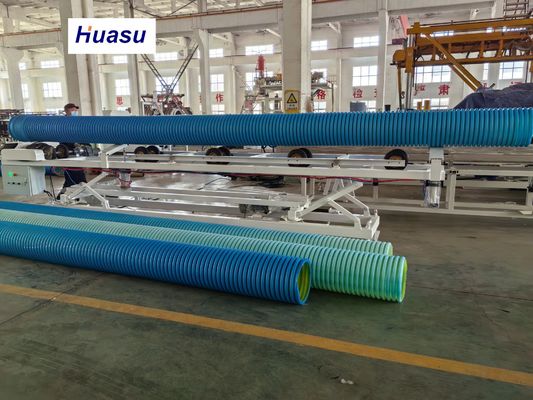

The Corrugated pipe extrusion machine is capable of manufacturing corrugated pipes with outer diameter/internal diameter sizes ranging from 32mm to 1600mm. These corrugated pipes find extensive applications such as cable protection cover and medical transfer pipe in smaller sizes. For larger sizes, they are commonly used in gas and water transfer applications.
