Diameter 2000mm Mesin Extruder Pipa Hdpe Sekrup Tunggal 1500kg / H.

  • Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H
  • Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H
  • Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H
  • Diameter 2000mm Single Screw Hdpe Pipe Extruder Machine 1500kg/H
Tempat asal Cina
Nama merek SD Huasu Brand
Sertifikasi CE, ISO9001:2008, UL, QS, GMP
Nomor model tipe kecepatan tinggi
Kuantitas min Order 1 set
Harga $21,500.00/ Set
Kemasan rincian paket standar atau sesuai kebutuhan
Waktu pengiriman 30 hari kerja
Syarat-syarat pembayaran T / T
Menyediakan kemampuan 50 set / bulan
Detail produk
Bahan sekrup 38CrMoAlA diameter sekrup 65mm
Bobot 6-8MT Dimensi 25m * 2.5m * 3m (L * W * H)
Layanan purna jual disediakan Dukungan teknis video, Suku Cadang Gratis, instalasi Lapangan PLC Simens
Menyoroti

Mesin Extruder Pipa Hdpe Sekrup Tunggal

,

Mesin Extruder Pipa Diameter 2000mm

,

Mesin Extruder Pipa Hdpe 1500kg / H
Tinggalkan pesan
Deskripsi Produk

Harga Rendah Diameter 16-2000mm HDPE PP PE PPR Multi-Layer Plastic Pipe Single Screw Extrusion Complete Line Machinery

Produsen Penjualan Langsung Mesin Extruder Pipa Air HDPE Berkualitas Tinggi terdiri dari tujuh bagian berikut:
TIDAK.
Nama
Kuantitas
1
Ekstruder sekrup tunggal (dengan sistem pengumpanan otomatis)
1set
2
Kepala mati (Cetakan)
1set
3
Kalibrasi dan tangki pendingin
1set
4
Mesin angkut
1set
5
Mesin pemotong
1set
6
Stacker
1set
Model Extruder
Diameter pipa
(mm)
Kapasitas produksi
(kg / jam)
Daya Total
(kw / h)
SJ50
16 ~ 63
100 ~ 150
75
SJ65
75 ~ 160
300 ~ 350
160
SJ75
200 ~ 400
600 ~ 700
280
SJ90
450 ~ 630
800 ~ 850
350
SJ120
710 ~ 1200
1200 ~ 1300
700
SJ150
1200 ~ 2000
1400 ~ 1500
1000



Diameter 2000mm Mesin Extruder Pipa Hdpe Sekrup Tunggal 1500kg / H. 0

Diameter 2000mm Mesin Extruder Pipa Hdpe Sekrup Tunggal 1500kg / H. 1

1. ekstruder sekrup tunggal (dengan sistem makan otomatis)

Motor: Siemens

Inverter: ABB

Kontaktor: Siemens

Relay: Omron

Pemecah: Schneider

Metode pemanasan: Pemanasan keramik atau aluminium cor

Bahan sekrup dan laras: 38CrMoAlA

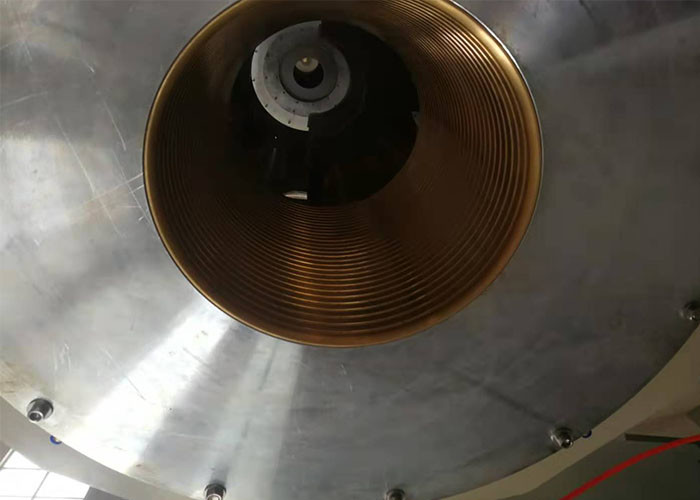

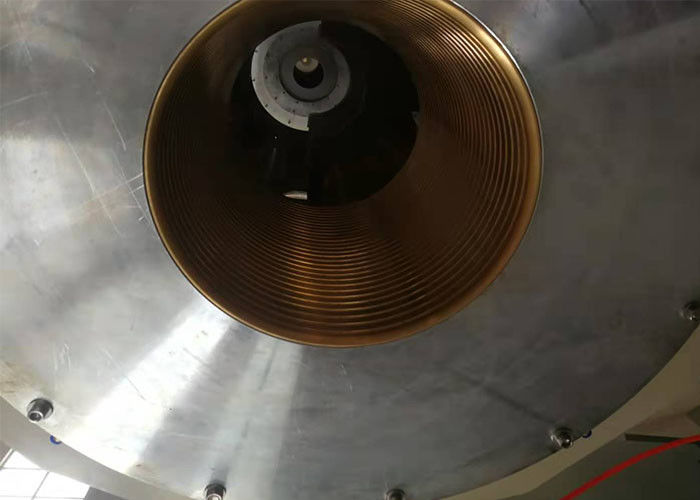

2. Cetakan

Bahan: 3GR17

Diameter: Disesuaikan

Diameter pipa: 16-1200mm

Kelas spesifikasi pipa:

0.6MPa,0.8MPa,1.0MPa, 1.25MPa,1.6MPa

SDR26, SDR21, SDR17, SDR13.6, SDR11
